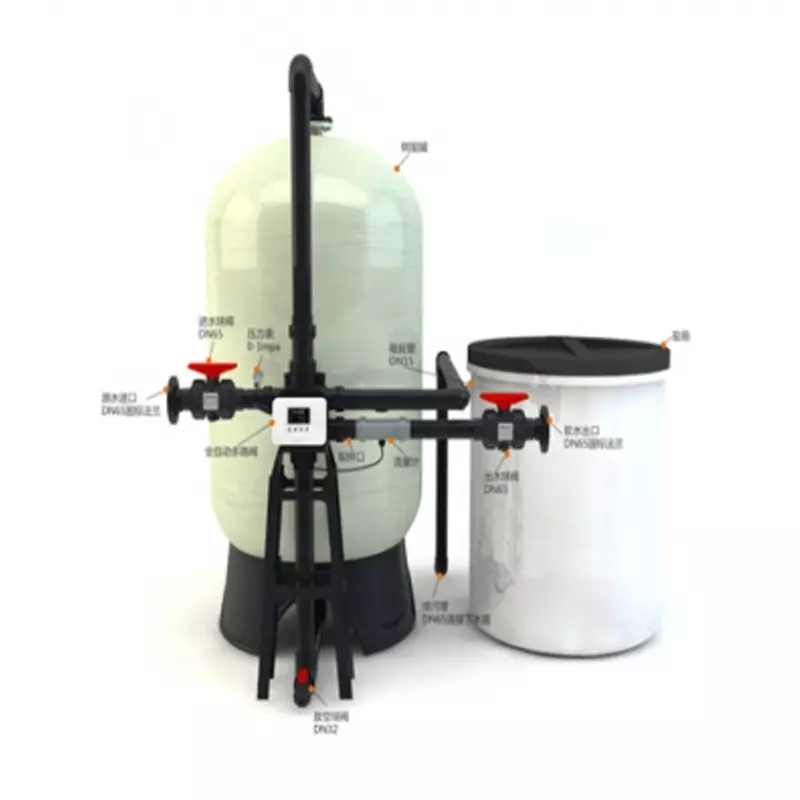

Introduction to Boiler Water Treatment Equipment
Softening, as the name suggests, means reducing the hardness of water. A fully automatic water softening system consists of three parts: the ion exchange part, the salt regeneration part and the control part. Ion exchange technology is the working principle of a softening system. Its main component is ion exchange resin. Since water hardness is mainly formed and represented by calcium and magnesium, cation exchange resin is generally used to replace Ca2+ and Mg2+(the main components of scale) in water. As the amount of Ca2+ and Mg2+ in the resin increases, The efficiency of resin in removing Ca2+ and Mg2+ gradually decreases.
Technical parameters of boiler water treatment
Raw water hardness: ≤6mmol/L
Raw water turbidity: Complies with national tap water standards
Effluent hardness: ≤0.03mmol/L(conforming to GB1756-1996 standard)
Inlet water pressure: 0.2-0.5MPa
Operating temperature range: 2℃-50°C
Placement method: Single-tank type or multi-tank type in parallel
Power supply: 220V,50HZ
Control mode: Fully automatic program control
Power consumption: 3-125W
