Product Overview

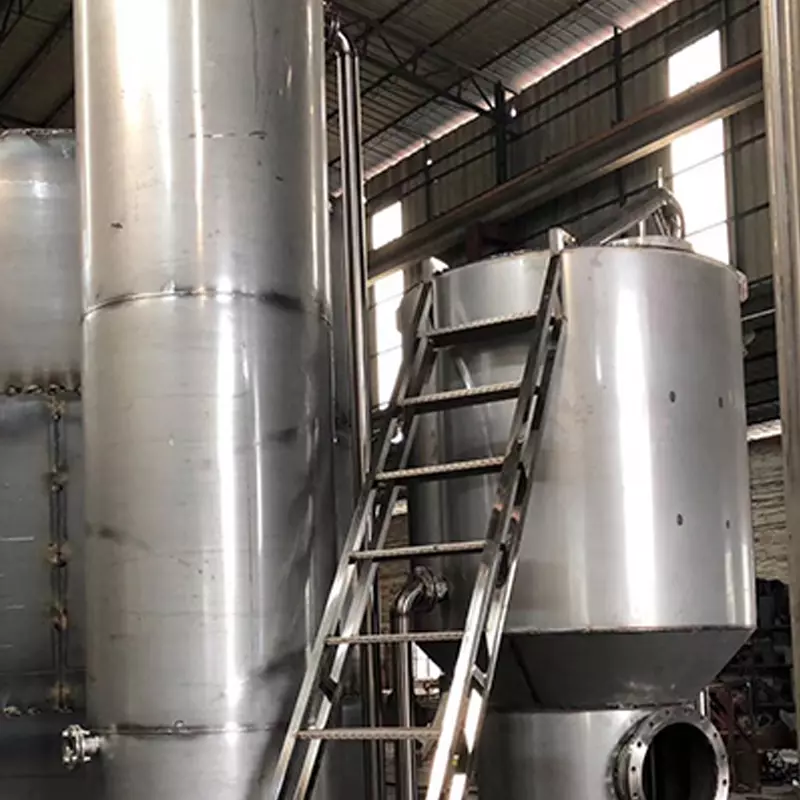

The integrated water purification system independently developed by Guangdong Hanluo Environmental Protection Technology Co., Ltd. is a highly modular, intelligent and ready-to-use water treatment solution. It integrates the traditional complex water treatment process flow (coagulation, sedimentation, filtration, disinfection, etc.) into a compact steel or anti-corrosion material tank, achieving fully automatic and one-stop treatment from raw water to qualified purified water. This system, with its core advantages such as small footprint, low investment, high degree of automation, stable operation and simple management, is widely applied in small and medium-sized scenarios for domestic drinking water, production water, landscape water and pretreatment.
Core design concept
Integrated design: By integrating multiple processes, it greatly saves floor space (only 30%-50% of traditional processes), and is especially suitable for projects with tight land or those requiring rapid deployment.
Intelligent control: It adopts a PLC fully automatic control system, featuring one-button start and stop, automatic backwashing, chemical dosing, fault alarm and remote monitoring functions, achieving unattended operation and reducing labor costs.
Modular structure: The core components adopt standardized module design, which is convenient for transportation, installation, expansion and later maintenance.
High adaptability: It can flexibly adjust the process combination according to the raw water quality (river water, reservoir water, groundwater, etc.) and the target water usage standards, with a high degree of customization.
Standard process flow
A typical HL-IWPS series integrated water purification system includes the following core units (which can be added or deleted as required) :
Raw water pressurization and distribution unit: Stabilize the inlet water pressure and flow rate.
High-efficiency coagulation unit: Automatically adds coagulant and achieves rapid and uniform mixing through a pipeline mixer.
Flocculation sedimentation unit (optional inclined tube/plate sedimentation) : Forms flocs and achieves efficient solid-liquid separation, removing most suspended solids and colloids.
Multi-media filtration unit: It uses graded quartz sand, anthracite and other filter materials to deeply remove fine particles, turbidity and some organic matter.
Activated carbon adsorption unit (optional) : Further adsorbs odors, color, residual chlorine and organic pollutants to improve taste.
Precision filtration and disinfection unit: Built-in security filter, and integrated with ultraviolet disinfection device or sodium hypochlorite dosing device to ensure the safety of microbial indicators in the effluent.
Intelligent electronic control and instrument unit: Integrates all control, monitoring and protection functions.
Core technical features
High-efficiency flocculation technology: Utilizing hydraulic or mechanical flocculation design, the reaction is thorough, the flocs are dense, and the sedimentation speed is fast.
Adaptive backwashing: The system intelligently initiates the backwashing program based on the operating time or pressure difference, with low water consumption and thorough restoration of filter material performance.
High-quality materials: The main body can be made of carbon steel with anti-corrosion treatment (epoxy asphalt, polyurethane), stainless steel (304/316L), or food-grade fiberglass reinforced plastic to ensure the durability of the equipment and the safety of the effluent.
Energy conservation and consumption reduction: Optimize the hydraulic flow pattern, reduce system resistance, lower power of the matching water pump, and save 15% to 20% of operating energy consumption.
Friendly human-machine interaction: Equipped with a touch screen, it can display key parameters such as flow rate, pressure, turbidity and liquid level in real time, and the operation is intuitive and simple.
Typical application fields
Rural safe drinking water projects and small-scale waterworks in towns and townships
Pre-treatment of production water for industrial and mining enterprises and supplementary water for cooling circulating water
Decentralized water supply for schools, hospitals, camps, residential areas, etc
Water treatment for scenic spots and park landscapes
Temporary water supply for construction
The pretreatment unit serves as a reliable pre-treatment guarantee for reverse osmosis (RO) and ultrafiltration (UF) systems
Our service commitment
Adhering to the principle of "sincere cooperation and quality service", Guangdong Hanluo not only offers high-quality products but also provides comprehensive value services
Professional consultation and solution design: Free water quality analysis, tailor-made technical solutions.
Standardized production and installation: Pre-assembly and commissioning in the factory, rapid on-site connection, and shortened construction period.
Comprehensive training and delivery: Provide systematic training to the customer's operators until they can take up their posts independently.
Long-term after-sales service and support: We offer warranty period services and lifetime technical consultation, with timely supply of spare parts.
Make professionalism more integrated and water purification simpler. Choosing the Guangdong Hanluo Integrated water purification system means choosing an efficient, stable and worry-free water environment guarantee.
